Digital Anti Drone Radar Long Range Surveillance Radar 6km Range All Weather Operation

Brand Name : HYH

Model Number : LY-X-3D-I

Place of Origin : Chengdu

MOQ : 1

Price : Negotiable

Payment Terms : D/P,T/T,Western Union

Supply Ability : 20set/month

Delivery Time : 30days

Operating Altitude : 0-10 km

Scanning Mode : Pulse Doppler

Scan Rate : Up to 60 RPM

Resolution : 1 M

Detection Range : Up to 100 km

Scanning Range Pitch : 0°-40°

Operating Frequency Band : X Band

Antenna Type : Parabolic

Frequency : S-band

Blind Range : 180m

Antenna Speed : <6s

Data Update Rate : 1-10 seconds

Scanning Range : Azimuth：0°-360°，Pitch：0°-40°

Transmit Power : 320w

Power Supply : AC 220V, 50Hz

Minimum Detection Range : 10 m

Range Resolution : 1-10 m

Antenna Diameter : 1-5 m

Scan Mode : Sector Scan

Antenna Rotation : 360 Degrees

Scanning Range Azimuth : 360°

Receiver Sensitivity : -120 dBm

Pulse Width : 1-10 μs

Transmitter Power : 1-10 kW

Pulse Repetition Frequency : 100-1000 Hz

Range : Up To 100 Km

Contact Now

Digital Phased Array Radar with Beidou/GPS | 6km UAV Detection & All-Weather Operation

Product Overview

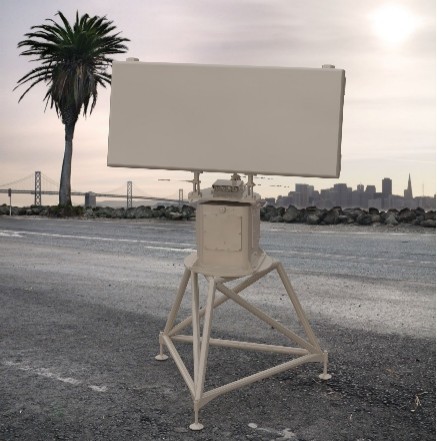

The LY-X-3D-I is a fully solid-state, coherent, active digital phased array radar designed for low-altitude surveillance, including detection and tracking of general aviation aircraft, drones, and other slow-moving small targets. It provides real-time distance, azimuth, altitude, and velocity data, generating a 3D operational picture for airspace security and interception systems. Featuring automated target recognition and high reliability, it ensures effective monitoring of non-cooperative and high-threat targets in critical areas.

Digital Anti Drone Radar Long Range Surveillance Radar 6km Range All Weather Operation

Key Features

Superior Low-Altitude Surveillance: Optimized for slow-moving, small targets.
Advanced Technology: Flexible operation modes with altitude measurement capability.
Compact & Reliable: Highly integrated, cost-effective, and durable design.
High Precision: Sub-0.5° accuracy in altitude measurement.
Adaptability: Robust performance in diverse environments.

Technical Specifications

Category	Parameter	Details
Operating Frequency		X-band
Detection Range	Max Detection (Small Targets)	≥6 km (RCS=0.01m², extendable)
	Max Detection (General Mode)	≥25 km (RCS=2m²)
	Min Detection Distance	≤300 m
	Altitude Coverage	≥3500 m (for 2m² targets)
	Azimuth Range	0° to 360°
	Elevation Range	0° to 45°
Detection Accuracy	Distance (RMS)	≤30 m
	Azimuth (RMS)	≤0.4°
	Altitude (RMS)	≤0.5°
Resolution	Distance	≤50 m
	Azimuth	≤2.5°
	Altitude	≤4°
Data Rate		5s, 10s
Detection Probability		0.8
False Alarm Rate		10⁻⁶
Operational Performance	Power Supply	AC (220V±10%, 50Hz±5%) or generator
	Power Consumption	≤1000 W
Reliability	MTBF	≥1000 hours
	MTTR	≤30 minutes
	BIT Fault Detection Rate	≥95%
Environmental Adaptability	Operating Temperature	-30℃ to +50℃ (outdoor) / -10℃ to +40℃ (indoor)
	Storage Temperature	-45℃ to +65℃
	Humidity Resistance	98% RH (at 35℃ for outdoor)
	Wind Resistance	Operational at 25 m/s
Positioning System	Navigation & Timing	Dual-mode Beidou/GPS system (positioning accuracy ≤10m, heading ≤0.2°)
Mobility	Deployment	Vehicle-mounted, rooftop installation via elevator/crane, modular design

Performance Validation

Digital Anti Drone Radar Long Range Surveillance Radar 6km Range All Weather Operation

Air Traffic Surveillance: Capable of tracking flights within 6 km, as demonstrated in Figure 2.
Test Results: Continuous tracking of UAVs up to 11 km with precise distance, azimuth, and altitude measurements.

Certifications & Applications

Compliance: Meets international standards (CE, FCC).
Use Cases: Airspace security, drone defense, border surveillance, and critical infrastructure protection.

Why Choose LY-X-3D-I?

Precision: 0.5° altitude accuracy and dual-mode navigation.
Versatility: Adapts to extreme environments (-45℃ to +65℃ storage).
Scalability: Modular design for rapid deployment.
